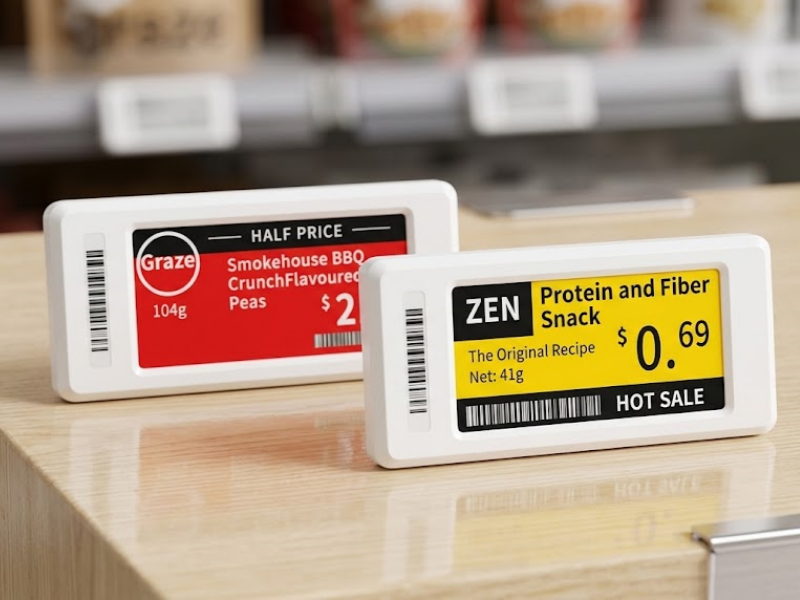

ESL Dimensions: Tatut hta nambat ni gara hku rai nga ai
Electronic shelf jut masat kumla niscreen diagonal hku nna kaba ai, monitor hte phone ni a matu lang ai ladat hte maren sha re. Legoyo a range gaw compact jahtum kaw 1.53 inch kaw nna 9.7 inch du hkra grau kaba ai ndau shana ai lam ni a matu rai nga ai.
Retailers law malawng shawng ra sharawng ai jahpan gaw 1 re.hkum hkrang sung ai- label gaw shelf myi man kaw nna shinggan de kade tsan ai de pru wa ai. Ndai kaw gaw, 4.2" model a matu Legoyo a jep chyoi da ai spec lawm ai, range ting na dimensions ni hpe madun da ai:
| Screen kaba ai | Label galu kaba ai | Label tsaw ai | Hkum hkrang sung ai | Laksan jai lang ai lam |
|---|---|---|---|---|
| 1.53" | ~48 mm | ~33 mm | 8-10 mm | Tsi rung, hkum hkrang nsam gram lajang ai arung arai ni, n-gun n rawng ai shingnip ni |
| 2.13" | ~72 mm | ~38 mm | 8-10 mm | Masha law ai - malu masha seng, manam pyaw ai baw dut ai lam ni |
| 2.66" | ~84 mm | ~43 mm | 9-11 mm | Hkrak ai gat seng ni, dip nna shinggyin la u |
| 4.2" ✓ | 97.4 mm | 88.9 mm | 10-12 mm | Supermarket madang, sutdek |
| 5.8" | ~155 mm | ~73 mm | 11-13 mm | Mid-format malu masha seng, ndau shabra ai lam ni |
| 9.7" | ~235 mm | ~160 mm | 13-16 mm | Electronics, tsabyi, laksan dut mari ai |
✓=hpe Legoyo a4.2-inch ESL masat masa laika. Kaga sumla ni gaw screen size shagu hta e-ink ESL gawgap ai lam a matu malai hku nna madun dan ai; order n galaw shi yang, langai hkrai a product page ni hpe jep yu u.
8–16 mm sung ai gaw, n-gun n rawng ai credit card langai a sung ai daram rai nga ai - gara gondola shelf a matu mung lachyum pru ai pat shingdang lam n re. Dai nambat ni gaw .galaw ushanhte shut ai shaloi manghkang ni hpe shabyin ya ai gaw label galu kaba ai hte label tsaw ai, sung ai n re. Dai lam hpe lawu de grau chye lu na re.

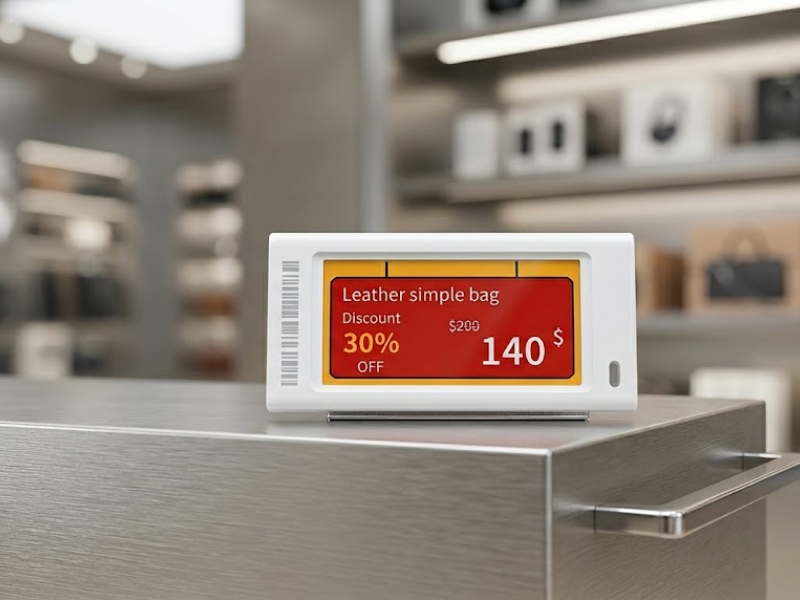

ESL ni gaw Ya na Paper Label Setup hte gara hku shingdaw mai ai kun?
Vendors ni kaw na standard mahtai gaw ESLs ni gaw "almost no space" - hkrak ai raitim, dai ni nang hta nga ai hte shingdaw yang clearance lu na kun, sum na kun ngu ai hpe sawk sagawn nga ai rai yang, karum shingtau lam n nga ai.
Laika man hpe n-gun jaw ai ladat langai hta plastic snap-in channel (10–14 mm sung ai), laika hpe bang ai shara hkum nan, gat seng law law hta n-gun jaw ai clip, shelf talker, shing nrai, ntsa kaw 5–20 mm bai jat bang ai masat da ai shara ni lawm ai. Hkum tsup ai laika man label strip gaw shelf jut kaw law law lang pru wa ai12-28 mm, accessories kade daram bang da ai hta hkan nna galaw ai.
Legoyo a 4.2" ESL at 10–12 mm gaw, standard shelf rails law malawng de hkrak hkrak shinggrup da ai. Laika man channel gaw shara kaw sha nga nna, ESL gaw dai ntsa e jung da ai, shing nrai, dai hpe tsep kawp yeng seng kau ai - gara hku mi rai rai, byin pru wa ai prut prut ai lam gaw, shi galai kau ai hte maren (sh) grau n-gun n rawng ai.
Magam bungli galaw ai lam shai hkat ai lam ni hpe hkrak tup maga mi de-by-maga de shingdaw yu na matu,Shelby Report a dut mari hpaji masa hpe tsun dan ai
galai shai ai lam hpe ngut kre hkra galaw ngut sai gat seng ni kaw nna akyu rawng ai ningmu ni hpe jaw ya ai. Anhte hkum nan lam madun ai .ESL hte laika man masat kumla nibungli galaw ai lam hpe shingdaw ai lam hpe tup hkrak shinggrup da ai.
Label Size hpe n lata shi yang, yu ra ai lam masum
ESL masing ni hta shelf-space manghkang law malawng gaw, order n galaw shi yang, check masum kaw na langai hpe lai kau ai kaw na pru wa ai.
1. Label a galu kaba ai lam hte na a arai hpe shingdu dat ai galu kaba ai lam
Hkum hkrang sung ai lam gaw manghkang n law ai. Teng sha bawnu machyi shangun ai dimension gaw .Label hkum hkrang dam ai gaw, arung arai hpe masat da ai tawn da ai shara hte seng nna. mm slot kaw product langai mi dung nna, 97.4 mm hkum hkrang lawm ai label hpe nang order galaw ai rai yang, htingbu slot hpe shinggrup kau ai (sh) na a planogram kaw na myi man langai mi hpe sum mat ai. Dai lahkawng hpe mung n hkap la mai ai mid-deployment.
Size lata ai lam hpe n jahtum shi yang, na a gat seng kata na n-gun n law dik ai arung arai hpan hpe shadawn nna, nang lata ai label width gaw dai slot kata de hkrat ai hpe kam u. Ndai gaw tape measure hte minit 30 daram aten la nna, full-store ESL rollouts ni hta byin chye ai sizing shut ai lam langai hpe pat shingdang ya ai.
2. Label tsaw ai hte Product a myi man
Label height gaw, shelf npu kaw na product a shawng na myi man kade daram n mu lu ai hpe dawdan ya ai. Legoyo a 38 mm galu ai 2.13" label gaw, madang dep ai lu sha ntsin htung a daw kaji hpe pat da ya ai. 160 mm hta 9.7" label gaw grau ahkyak ai daw hpe shinggrup da ai.
Lawu na-shelf shara ni hta, customers ni hti na matu hput di nna, label ni hpe hti na matu, kaji ai gaw grau kaja hkra galaw chye ai -, sung ai majaw n re, san seng ai layout hte compact label gaw, laika hte hpring ai kaba ai label hta, 30 cm kaw nna parse galaw na matu loi ai. Label size hpe screen-size masat masa ni hpe sha n-ga, dai shelf tsaw ai hte customers ni gara hku hkum hkrang hku kanawn mazum ai hte bung hkra galaw u.
3. Ya nga ai Label Channel hta hpa byin wa na
Ndai ga san gaw shawng ningnan-lang mari ai ni hta galoi mung nga ai raitim, hkrak san ai gaw n law ai:ESL ni hpe n bang shi yang, ya lang nga ai paper label strips ni hpe shaw kau ra ai kun?Law malawng hta gaw n re. Legoyo a ESL ni hpe zero shelf galai shai ai lam hte drop-in hta jung na matu galaw da ai - shanhte gaw clip-in, magnetic, peg hook, hte adhesive n-gun ni hpe lang nna, ya nga ai wanleng lam ni hta (sh) dai ni a makau kaw bungli galaw ai. Installation hpung ni gaw, 500+ ngu ai masat kumla ni hpe, madang dep ai gondola shingnip ntsa hta, shift langai hta sha, n-gun dat mai ai. Moi na (sh) n--madang n-rawng ai wanleng profile ni lawm ai shara hta, adapter clip gaw structure bungli n galaw ai sha, htuk manu ai lam hpe hparan ya ai. Dailahkam-by-lahkam ESL hpe bang na matu lam matsunmabyin lahkawng yan hpe shinggrup da ai.
Store grup yin hku nna galu kaba ai lam hpe hpaji jaw ai
Lusha seng kaba ni
2.13"–4.2" lapran gaw, madang dep ai malu masha htingnu law malawng hpe shinggrup da ai. SKU daw kaba ni a matu, n-gun n rawng ai arung arai ni a matu - shat mai, manam pyaw ai baw, malu masha, sauce - 2.13" shing nrai 2.66" gaw, mai lang ai shara kata hta label galu kaba ai hpe shim lum ai hku tawn da ya ai. 4.2" gaw kaja ai lam langai a matu mungkan ting na dut mari ai madang rai nna, gondola wanleng lam ni a grau dam lada ai hte htap htuk nna, screen real estate hte shelf density lapran hta hkrak ai rap ra lam hpe lu la ai.
malu masha seng ESL deployment ni.Hkrak ai gat seng ni
SKU density gaw supermarket hta n law ai raitim, langai a matu shelf shara gaw grau n law ai. 2.66" gaw C-store gondola configuration law malawng a matu kaja wa bungli galaw ai. Shawng ningnan lang na convenience store deployer ni hpe mau shangun ai lam langai gaw: store a lagaw n-gun kaji ai majaw, wireless access point langai sha gaw, mabyin shagu hta dut shabra ai shara ting hpe shinggrup da ai majaw, npawt nhpang gawgap ai lam hpe n-gun n jaw ra ai. dai gaw gara hku galaw ai ngu ai gaw nang lata ai ESL wireless standard hta madung nga ai - anhte a shingdaw ai lam hta madung nga ai.Bluetooth hte Wi Fi hte GHz ESL ladat nishinggrup ai lam hte battery-asak hkrung lam hpe sang lang dan ai.
Tsi rung ni
Tsi rung grup yin ni hta ahkyak ai galai shai ai lam gaw, sung ai n re ai sha, label width re. Tsi rung ni hta blister pack, hka htung, unit-dose box - law malawng gaw n-gun n rawng ai. Hpaji masa hku nna sung ai hku kaja ai label gaw, htingbu SKU a slot de sai lwi shang wa yang, shingran n kaja ai lam hpe naw shabyin ya na re, dai gaw planogram-hkang ai OTC daw ni hta grau nna hkra machyi shangun ai. 1.53"–2.13" lapran gaw, -hkum tsup ai tsi rung shingdu tawn da ai shara ni a matu madang rai nga ai; 2.66" gaw grau dam lada ai-format OTC (sh) tsi mawan daw ni a matu bungli galaw ai.Legoyo a dut mari ESL laika bukna a order hpe n kam shi yang.
Hkrak ai hte Electronics dut mari ai lam
Shelves kaba ni, SKU n law ai, hte specification detail ni gaw dawdan ai lam hpe shadut ya ai arung arai ni. 5.8"–9.7" range gaw ndai kaw shi a grau kaba ai lagaw lahkam hpe lu la ai gaw, manu - hpe teng sha shamu shamawt shangun ai manu - hte rau garan gachyan ai ga si ni, arung arai masat masa ni, hte QR code ni hpe madun dan ai hku nna re. Electronics hte nta na arung arai ni hpe dut shabra ai hta law law lang byin ai grau dam lada ai arung arai ni a shingdu labau gaw ndai format ni hta planogram manghkang byin ai lam n law ai.
Refrigerator hte Frozen hpe madun dan ai
Standard e-ink ESL ni gaw 0℃kaw nna 40℃du hkra bungli galaw ai . Refrigerator hte frozen case ni hta −20℃(sh) dai hta npu de masat da ai yaw shada lam-gaw da ai npu-katsi ai hkrang ni ra ai. Ndai ni gaw Legoyo a madang masat da ai size range law malawng hta mai lang nna, clip langai sha lang ai-mounting ladat hta - galai shai ai shelving n ra ai. Cold-chain daw ni a matu n-gun n jaw shi yang, bungli galaw ai nbung katsi ai lam hpe galoi mung jep yu u.
Tengman ai Lamu ga Manghkang ni hpe shabyin ya ai Sizing Dawdan ai lam mali
Label hkum hkrang dam ai hpe n jep yu ai sha screen size hku nna order galaw ai
Screen size gaw, label hkum hkrang a galu kaba ai lam n re ai sha, display a diagonal shadawn ai lam re. Aspect ratio n bung ai ngu ai gaw 5.8" label (155 mm dam ai) hte 4.2" label (97.4 mm dam ai) gaw shan lahkawng gaw standard size rai tim, hkum hkrang dam ai lam grai shai ai hpe tsun mayu ai. Label hpe galoi mung shingdaw yu uhkum hkrang dam aiscreen diagonal n re ai sha, law law lang order - hpe n bang shi yang, na a kaji dik htum ai arung arai hpe ninghkap ai.
Shelf rails yawng gaw ESL clip ni hpe hkap la ai ngu sawn la ga
Lai wa sai 15 ning laman hta jung da ai gondola shelving law malawng gaw ESL clip ni hta lang ai standard snap- hte htuk manu ai. ESL hpe n hkap la shi ai aten na moi na arung arai ni, refrigerated cabinet chyinghka ni, hte sutdek pallet racking nkau mi ni gaw, dai hta n lawm ai. Store- ting hpe n shabra shi yang, na a laksan wanleng profile hta hkum hkrang sample hpe chyam yu u. Dai gaw 10-minit tup jep yu ai lam rai nna, install galaw ai shani hta deployment-jahkring kau ai manghkang hpe pat shingdang ya ai - dai gaw Legoyo gaw law law lang ga sadi n jaw shi yang sample ni hpe order galaw na matu hpaji jaw ai lam re.
Lawu na-shelf shara ni hta-format kaba ai masat kumla ni hpe lang ai
Lawu na shelves ni hta nga ai manghkang gaw depth - n re ai sha hti mai ai lam re. Lawu na-shelf kaw na arai langai hpe yu na matu hput di nga ai customer langai gaw 20–40 cm tsan ai kaw na label hpe mu ai. Promotional text ni hte hpring chyat nga ai label kaba hpe dai tsan ai shara kaw parse galaw na matu grau yak ai, san seng ai, n bung ai manu dan ai -label hpe madun dan ai compact label hta grau yak ai. Lawu kaw kaji ai label ni, myi man madang hta kaba ai ngu ai gaw gara hpaji masa hpe lang tim, jai lang mai ai layout principle re.
Endcaps hte ndau shabra ai lamang ni a matu masing n nga ai
Dingyang gondola gat ai gaw dingyang rai nga ai. Endcaps, shinggrup da ai jahtum na shingnip ni, hte laksan tsap nga ai ndau shabra ai shara ni kalang lang angle brackets ni ra ai .shing nrai, gondola order hta n lawm ai custom n-gun jat ai hparan ladat ni hpe galaw ai. Ndai lam ni hpe nta npawt kaw nna masing jahkrat ai shaloi, n yu n hkan galaw na matu loi ai. Pre-pilot site sawk sagawn ai aten hta shanhte hpe chye ginhka ai gaw masing jahkrat ai aten n law ai daram rai nna, n hkru n kaja ai mid-deployment galaw ai lam hpe pat shingdang ya ai. Chye na mayu ai rai yang .
ESL masa ni gara hku bungli galaw ai hpe jahtum- kaw nna-hpanghardware kaw nna software du hkra, dai laika buk gaw sumla ting hpe tsun dan da ai.Lawan ai hku hti yu na: Shelf amyu hku nna hpaji jaw da ai ESL Size
| Shelf / Arung arai amyu | Hpaji jaw da ai galu kaba ai | Hkum hkrang sung ai | Madung myit yu ra ai lam |
|---|---|---|---|
| Lusha kaji (jar, sachet, manam pyaw ai baw) | 1.53"–2.13" | 8-10 mm | Label hkum hkrang dam ai gaw, arung arai shara kata kaw sha nga ra ai |
| Standard malu masha (htinggrum da ai arung arai ni, lu sha ni) | 2.66"–4.2" | 9-12 mm | 4.2" gaw gondola wanleng hte htuk manu ai lam kaba dik htum nga ai |
| Tsi rung / OTC (hpun n-gun, hka htung) | 1.53"–2.13" | 8-10 mm | Width gaw ahkyak ai galai shai ai lam re, depth n re |
| Hkrak ai gat seng (arung arai kayau kaya) | 2.13"–2.66" | 9-11 mm | Rail hte htuk manu ai lam hpe jep yu na; AP langai gaw nta ting hpe shinggrup da ai |
| Hpaji / wan jak / nta arung arai ni | 5.8"–9.7" | 11-16 mm | Specs hte QR code ni a matu screen shara law law lang u |
| Refrigerator / katsi ai hku madun dan ai | 2.66"–4.2" (npu -katsi ai hkrang) | 9-12 mm | Hkap la ai min. order n galaw shi yang, bungli galaw ai temp spec |
Nang n-hkap la shi yang: Manga-Point Sizing hpe jep yu ai laika
- Na a n-gun n law dik ai product hpe shadawn yu u.Na a label body width gaw dai slot kata kaw n-gun n rawng ai sha hkan nang ra ai.
- Rail hte htuk manu ai lam hpe chyam yu u.Hkum hkrang sample hpe hpyi shawn nna, law law hpe n mari shi yang, na a laksan shelf rail ntsa de clip galaw da u.
- Gara shelf tsaw ai lam ni lawm ai hpe sadi yu u.Lawu na-shelf shara ni gaw kaji ai, san seng ai label ni hpe ra sharawng ai; myi-madang na shelf ni hta grau nna shiga ni hpe htaw sa lu ai.
- Refrigerator (sh) hka lim ai daw ni hpe flag galaw u.Ndai ni gaw, n-gun n law ai-katsi ai hkrang ni hpe ap nawng da ai - n-gun n-jaw shi yang, katsi ai lam hpe n-gun jaw ra ai.
- Endcaps hte -n tara ai n-gun ni hpe chye ginhka ai.Ndai ni gaw htunghking bracket ni ra na re; dai scope hpe na a pilot plan hta bang da u.
FAQ
San: Electronic shelf label ni gaw nye a arai ni a barcode hpe pat kau na kun?
A: N rai, ESL ni gaw, dai arai ntsa kaw n re ai sha, shawng na wanleng strip - hpe shelf jut - ntsa kaw jung da ai. Product packaging ntsa kaw na barcode gaw, label a ntsa hte hpang kaw dung nna, tup hkrak mu lu ai. Label tsaw ai gaw manghkang byin wa ai masa langai sha gaw, grai kadun ai arung arai langai mi hta -format kaba ai label hpe bang da ai rai yang, dai majaw label tsaw ai hte arung arai kaba ai hpe shingdaw ai gaw ahkyak ai - rai nna, kaji ai label ni gaw sachets (sh) blister pack zawn re ai compact arung arai ni a matu grau kaja ai.
San: ESL ni hpe bang na matu, ngai hta nga ai laika man label strip ni hpe shaw kau ra ai kun?
A: Ga law malawng n re. Legoyo a clip-in hte magnetic mount hkrang ni gaw, nga taw sai label rail system ni a ntsa (sh) dai ni a makau kaw, arung arai ni (sh) npawt nhpang hpe galai shai ai lam n galaw ai sha bungli galaw ai. 2010 ning a shawng na gondola shingnip ni hta lang ai moi na (sh) n-htuk ai wanleng lam hkrang ni a matu - adapter clip gaw law malawng hta htuk manu ai lam hpe hparan ya ai. Legoyo a ESL install galaw ai lam matsun hta galaw sa wa na lam hpe tup hkrak yu u.
San: Electronic shelf label ni gaw shelf jut kaw nna kade tsan ai shara kaw pru wa ai kun?
A: Legoyo a e-ink ESL ni gaw galu kaba ai hta hkan nna 8–16 mm sung ai shara kaw dung nga ai. 2.66" hte 4.2" hkrang - hta grau nna lang ai - gaw 9–12 mm pru wa ai. Laika man bang da ai plastic label channel langai gaw 10–14 mm daram sha rai nga ai, dai majaw ESL ni gaw shingdaw mai ai hte laika pa channel hpe shaw kau ai shaloi grau n-gun n rawng ai.
San: Wireless access point gaw, shingnip ni hta shara la ai kun?
A: N rai, access point hpe ceiling ntsa (sh) bunghku ntsa tsaw ai shara kaw jung da ai, hpaga yumga galaw ai shara ni hta n jung ai. Kaji ai hte lapran tsang-size law malawng a matu, access point langai lahkawng gaw dut shabra ai shara ting hpe shinggrup da ai. Nang lata ai wireless madang gaw coverage range hte battery a bungli galaw ai lam hpe hkra machyi shangun ai - anhte a Bluetooth hte Wi-Fi hte Sub-GHz ESL system ni a matu lam matsun gaw hpaga yumga-offs ni hpe sang lang dan ai.
San: Refrigerator shelf ni a matu galaw da ai ESL ni nga ai kun?
A: Rai sai. Yaw shada ai lam-gaw da ai npu-hkum hkrang n-gun n law ai e{3}}ink ESL ni hpe madang masat da ai size range law malawng hta lu mai nna −20℃(sh) dai hta npu de masat da ai. Shanhte gaw ambient-temperature model ni zawn clip- hpe mung lang ai majaw, shelf hpe galai shai ai lam n ra ai. Cold-chain daw ni a matu order galaw ai shaloi, n law htum bungli galaw ai nbung katsi ai lam hpe madi madun u - dai gaw model langai hte langai shai ai.
San: Sample hku nna gara size hpe hpyi shawn ra na kun?
A: 4.2" - kaw nna hpang u, dai gaw mungkan ting hta grau nna jai lang ai size rai nna, madang dep ai gondola wanleng lam law malawng hte mung htap htuk ai. Na a gat seng hta n-gun n law ai-arung arai ni hpe tawn da ai shara ni (tsi rung, tsi rung, manam pyaw ai baw ni hpe tawn da ai shara) nga ai rai yang, sample or A2.6"6 hpe mung hpyi shawn u. side-by-side shingdaw ai lam gaw na a tengman ai shelf hta minit kru daram aten la nna, spec sheet langai mi n lu htai ai ga san shagu hpe ndai kaw Legoyo kaw na sample ni hpe hkrak hpyi shawn na re.
