Consumer TV hpe hpaga lam a matu lang ai gaw, galaw ai wa a warranty hpe jahten kau ya ai. Procurement team law malawng gaw lahkawng lang ngu na (sh) masum lang ngu na galai shai ai hpang ndai hpe mu tam la ma ai-dai aten hta shanhte a "budget" hparan ladat gaw hpaga yumga panel langai a manu hpe lai mat sai.

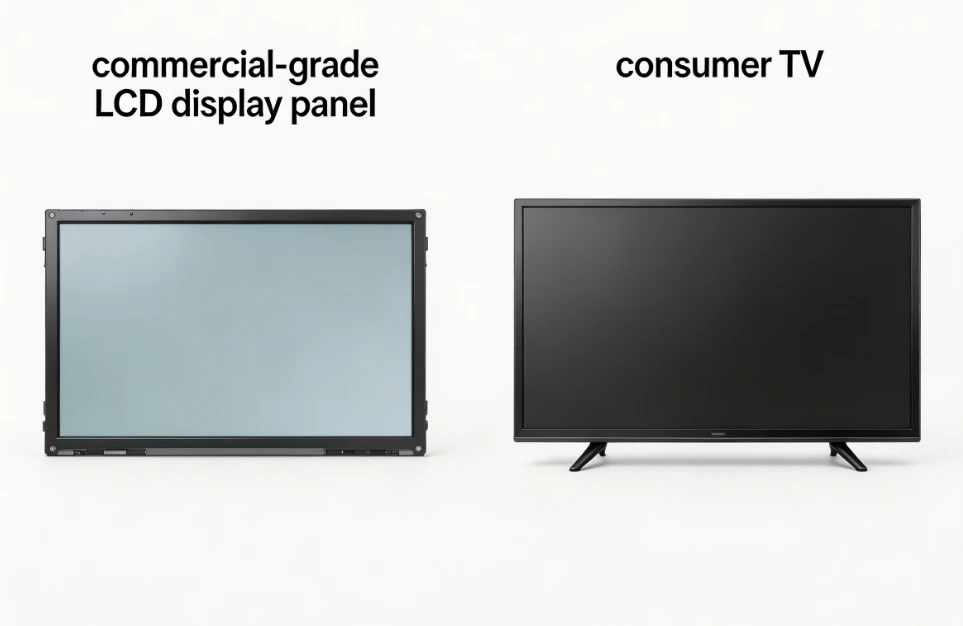

$300 manu ai consumer TV hte $1,200 manu ai hpaga yumga LCD panel lapran na manu garan ginhka ai lam gaw mari ai shaloi grai dan dawng ai zawn rai nga ai. Spec sheet langai mi hta, shai hkat ai lam ni gaw kaji ai zawn rai nga ai: resolution maren sha, screen size bung ai, lahkawng yan gaw LED backlight hpe tsun ai. Tengman ai garan ginhka ai lam gaw shata shi mali grup yin hta dan dawng wa ai, dai shaloi, dut mari ai shara hta shani shagu hkying hkum shi lahkawng tup galaw ai consumer-grade display ni gaw, dan dawng ai hku hkrat sum hpang wa ai (sh) hkrat sum wa hpang wa ai. Sut masa panel ni hpe hkying hkum 50,000 kaw nna 100,000 du hkra matut manoi bungli galaw na matu engineer galaw da ai-rai tim dai jahpan gaw hkrak hkrak jung da ai hte nbung hpe hkangzing ai lam hpe sawn la ai, dai gaw deployment law malawng shut ai shara re.
Engineering gaw teng sha shai hkat ai shara
Nhtoi htoi ai masa ni gaw mabyin daw mi hpe sha tsun dan ai. Hpa majaw nga yang, 200-300 nits hpe shapraw ai; dut mari na matu hpaga yumga -grade LCD madun ai panel ni gaw nta kata lang na matu 400-700 nits kaw nna hpang nna, hkuwawt hku shingdu de n-gun dat na matu 2,500-5,000 nits du hkra rai nga ai. Shana de na jan gaw na a gat seng shingna glass hpe hkra ai shaloi, ndai gaw aesthetics hte seng ai n re-dai gaw customers ni gaw na a manu jahpu hpe tsep kawp hti lu na kun ngu ai lam re.

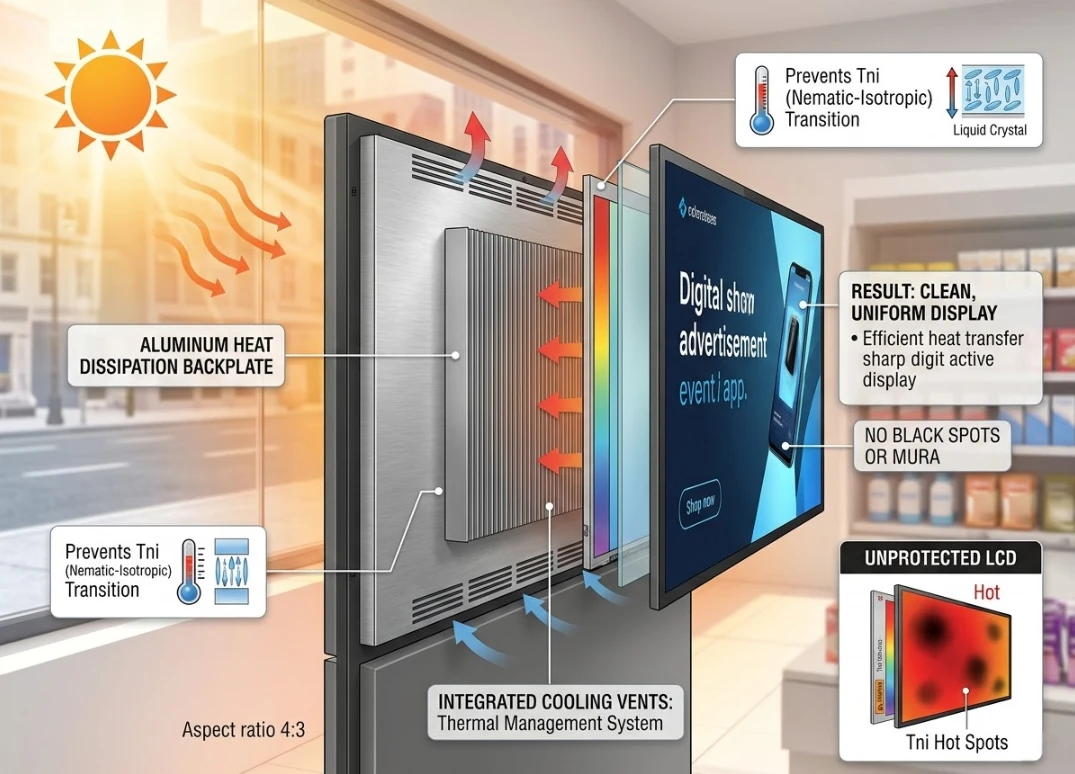

Thermal management gaw tengman ai garan ginhka ai lam hpe shabyin ya ai. Install galaw ai shara ni hpe jep joi yu ai shaloi, shawng na ga san gaw screen size-nbung lwi ai lam n re.℃jan ai LED junction n-gun gaw 10℃jat ai shaloi nhtoi htoi ai atsam hpe 3-5% shayawm kau ya ai. Sut masa panel ni gaw ndai lam hpe grau htum ai aluminum katsi ai hpe shapraw kau ya ai backplate ni hte hparan ya ai; consumer units ni gaw ndai kaw skimp galaw ai, hpa majaw nga yang nta kaw lang ai gaw thermal shadawn sharam hpe galoi mung n shadut ai majaw re. HVAC circulation n kaja ai, pat da ai dut mari shara hta, ndai shai hkat ai lam gaw, nbung laru aten hta na a display hpe nhtoi htoi mat na kun ngu ai hpe dawdan ya ai.
Dai hta, mari ai ni law malawng galoi mung n hkrum sha ai masat da ai lam langai nga ai: Tni, nematic-isotropic galai shai ai nbung laru. Panel a nbung katsi ai lam ndai threshold hpe lai mat wa ai shaloi, screen ntsa kaw nsam hpraw kaba ni pru wa ai. Industrial-grade hpaga lam hte seng ai LCD ni gaw, nbung laru kaba ai shara ni hta window-madat ai dut mari htingnu ni gaw, shawng nnan na hka lum aten laman, standard panel ni hpe shanhte a shadawn sharam hpe lai di kau na re majaw, laksan hku nna, high-Tni liquid crystal formulations ni hpe lang ma ai.
ROI: Nambat ni gara kaw na pru wa ai gaw ahkyak ai

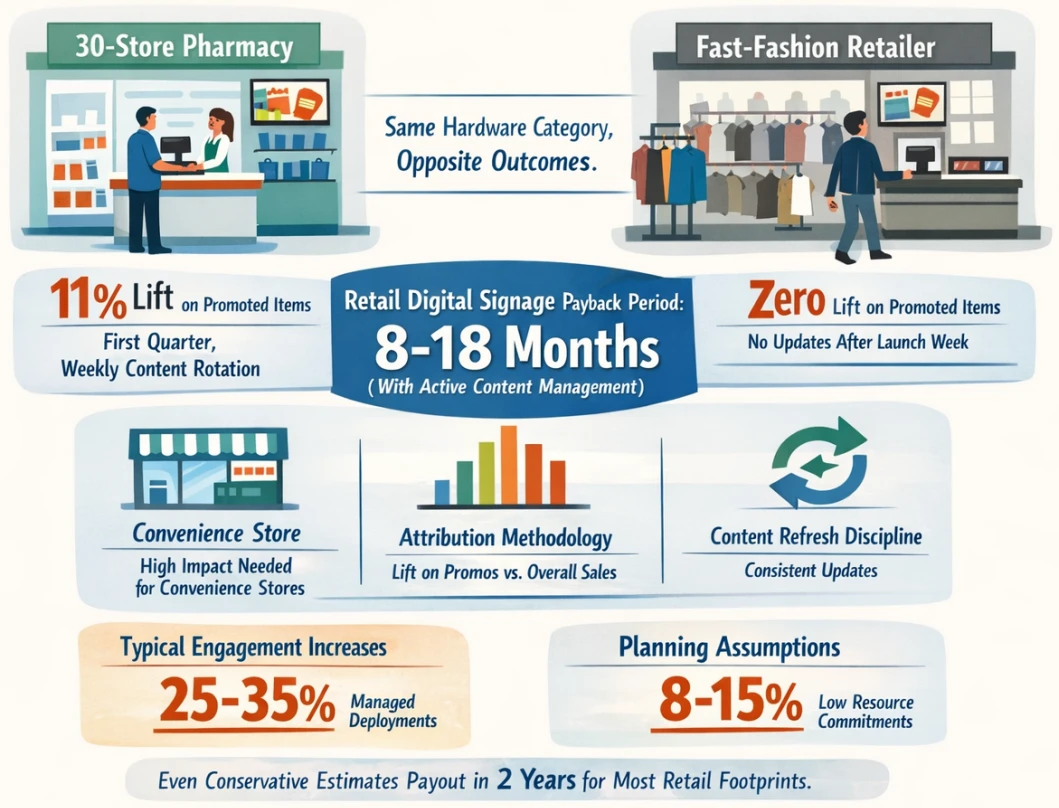

Midwest kaw anhte bungli galaw ai 30-store tsi rung langai gaw, shawng na quarter - laman hta, 11% rawt jat wa ai hpe hkan tam ai, bat shagu na shiga ni hpe galai shai nna, checkout kaw tawn da ai. Screen jahpan lahkawng lang law ai fast-fashion dut ai nta langai gaw, hpaw hpang ai bat ngut ai hpang, ndau shabra ai lam ni hpe n gram lajang ai majaw, shadawn shadang n nga ai hpe mu lu ai. Hardware hpan langai sha, nhtan shai ai mahtai pru wa ai.
Retail digital signage a matu gumhpraw bai wa na aten gaw, n-gun jaw ai lam hpe hparan ai lam galaw nga ai shata 8 hte 18 lapran hta hkrat sum chye ai. Ndai lam hpe galai shai shangun ai lam ni gaw: hpaga yumga manu (convenience store ni gaw, dollar langai sha hkrat sum na matu, nta htinggaw dut ai ni hta grau nna n-gun ja ai mari ai lam ni ra nga ai), attribution ladat (promoted galaw ai arung arai ni hta lift hpe shadawn ai gaw, grai law ai tsa lam shadang ni hpe madun dan ai; store yawng a dut shabra ai lam gaw, n-gun n law ai single digits hpe madun dan ai), hte refresh discipline.
Industry report ni hta tsun da ai 25-35% shanglawm ai lam jat wa ai gaw, marai langai ngai gaw dai lam hpe teng sha hparan ai deployment ni hpe madi madun ai. 8-15% hpe anhte gaw, content rotation galaw na matu ap nawng da ai arung arai ni hpe ap nawng na matu n jin jin shi ai client ni a matu masing jahkrat ai hku sawn la ai lam hku nna tsun ga ai-dai gaw n-gun rawng ai lam rai nga ai, dai gaw, dut mari ai lam law malawng a matu lahkawng ning laman hta naw pencil galaw nga ai.
Manga-Shaning TCO: Bawngban ai lam hpe ngut kre ai Math
| Manu jahpu lam | Hpaga lang ai ni a TV | Sut masa LCD |
|---|---|---|
| Shawng nnan na hardware | $300/hkum hkrang | $1,200/hkum hkrang |
| ning jan galai shai ai | 2-3 unit + bungli | 0 |
| ning na hardware manu | $1,100-1,800 | $1,200 |
| Warranty shingbyi shara | Sut masa lam hta jai lang na matu n mai lang sai | 3 ning madang |
| N-gun shai hkat ai lam | Npawt nhpang | 15-25% yawm ai |
Shani shagu hkying hkum kru jan screen ni hpe lang ai scenario shagu hta commercial panel gaw manu n law ai. Hkying hkum 8-bungli galaw ai shaloi, crossover gaw shata 30 grup yin hta byin ai. Hkying hkum 12 hta, shata 18 rai sai. Anhte gaw shata 24- deployment horizon hta lai nna, gara client masing a matu mung, jai lang ai ni a kaga ladat ni hpe quote galaw ai hpe jahkring kau sai-dai madi shadaw ai lit langai sha gaw, margin hpe n manu dan ai.

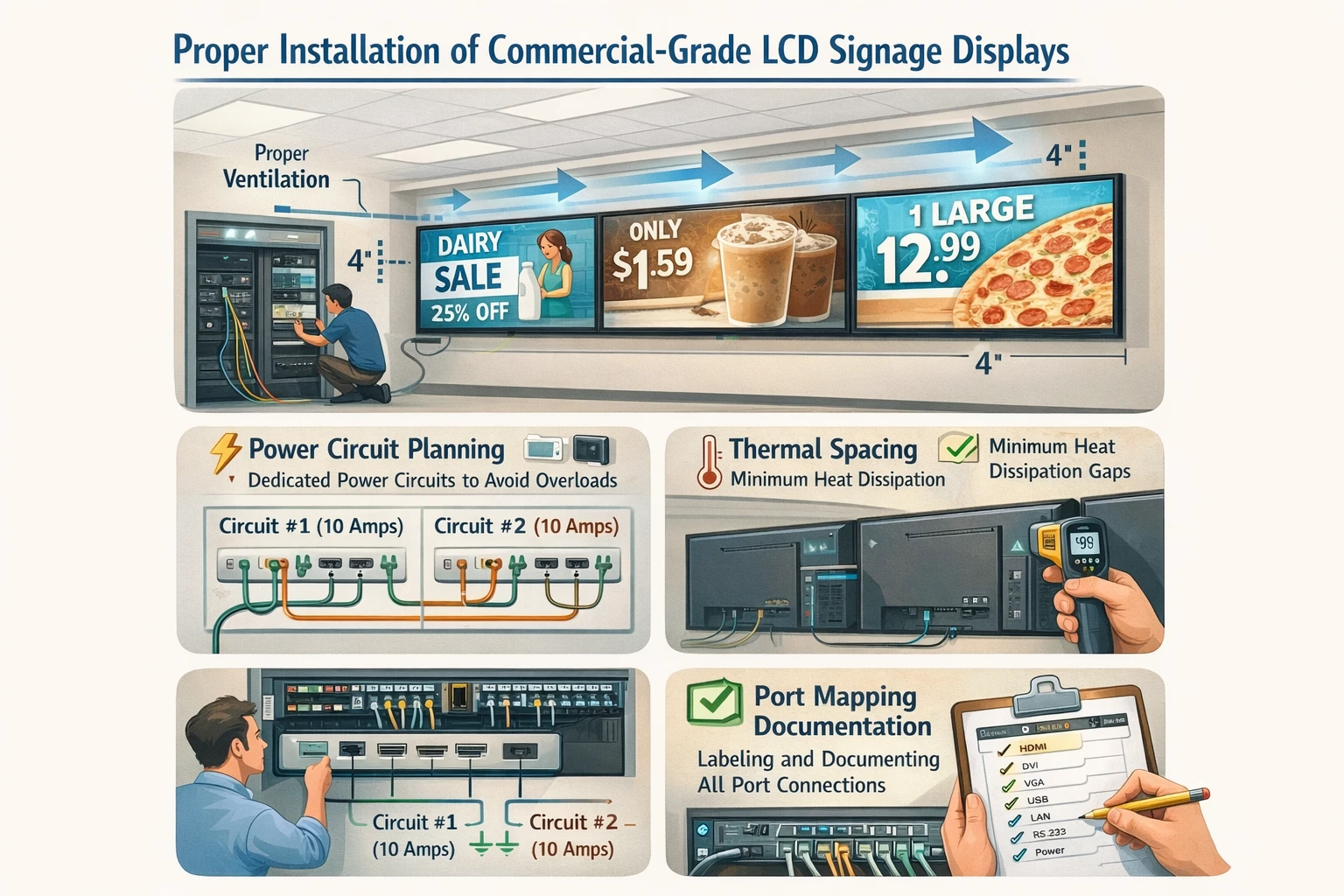

Installation galaw ai shaloi hkrat sum ai lam ni hpe anhte teng sha mu lu ai
Shawng nnan na nhtoi 90 ya laman anhte a service call hta na tsa htam shadang 60 gaw hardware n re ai sha configuration hpe hkan tam ai. Grau nna byin chye ai: install galaw ai ni gaw HDMI hpe port 2 de matut nna media player hpe port 1 a matu configure galaw ai input source n htap htuk ai lam ni. Ya anhte gaw port mapping laika hpe madang dep ai deliverable hku nna bang da ga ai-dai gaw hpa manu n jaw ra ai sha, shawng nnan na daw jau ai lam hpe lahkawng daw shayawm kau ya ai.
Power circuit masing jahkrat ai lam gaw, gram lajang ai makau grup yin ni hta mung, law law lang hkrat sum chye ai. Sut masa -grade lcd masat kumla ni gaw nhtoi htoi tu ai aten hta unit langai hta 2.5-4.5 amps hpe shapraw ya ai. Chain mali hpe 15A circuit ntsa de peak load hpe n sawn ai sha display galaw dat yang, hardware hkrat sum ai zawn rai tim, n re ai sha, aten kadun laman nhtoi htoi ai hpe mu lu ai. NEC wan jak tara gaw 80% grau htum ai n-gun hpe masat da ai-AV integrators ni hkan sa ai masat da ai raitim, general contractor ni gaw "screen nkau mi hpe sha jat bang ai shaloi" ayan n hkan sa ai.
Thermal spacing hpe n-gun n rawng ai dut mari shara ni hta n yu n hkan galaw ai. Anhte gaw shata 18 hta hkrat sum mat ai display ni hpe ka da ai rai nna, dai gaw sanit ning tup rai ra ai, dai gaw npu shara inch mali hpe hkye la na matu dawdan ai lam ni law wa ai majaw re. Anhte a masat da ai shara jep joi ai lam hta ya gaw, bungli galaw ai aten hta thermal imaging hpe mung lawm ai-lai wa sai shaning laman hta sha, garan gachyan ai lam hta manghkang masum hpe pat shingdang ya ai, jat bang ai lahkam langai mi re.
Supplier Ecosystem: Anhte teng sha hpaji jaw ai lam
Retail hta lcd display panel hpe wholesale mari na matu, dawdan ai lam gaw CMS hpe n-gun jaw ai lam (sh) shingra tara hpe hpawng de ai lam hpe ra sharawng ai kun ngu ai hta rai nga ai. Samsung a MagicINFO gaw shanhte a hardware kata de nang hpe lock galaw da ai raitim, site law law hpe hparan ai lam hpe asan sha galaw ya ai. BrightSign zawn re ai masum ngu na -party platform ni gaw grau nna hpawng de ai bungli ra ai raitim, site ra kadawn ai lam ni hpe madung tawn nna panel dut ai ni hpe kayau kaya galaw shangun ai-window-hpang shara ni hta -store a hpang- hta grau nna nhtoi htoi ai hpe ra na re, n ra ai manu jahpu hpe drive lahkawng yan hta dut ai langai hpe sha atik anang galaw shangun ai.
Anhte gaw Samsung hpe IT resources ni hpe ap nawng da ai client ni a matu spec galaw ai, shanhte gaw n-gup langai hpe sha n-gun jaw mayu ai. Anhte gaw, hardware manu hpe grau kaja hkra galaw na hpe ahkyak shatai nna, yak hkak ai lam ni hpe hparan na matu, integrator matut mahkai lam ni nga ai client ni a matu, third-party CMS hte kayau kaya deployment ni hpe spec galaw ga ai. Mungkan ting hta mahtai n nga ai-rai tim, shut ai mahtai nga ai, dai gaw panel manu hpe sha madung tawn nna lata ai hte shata kru na ai hpang CMS subscription model hpe mu tam ai lam re.
FAQ
Q: Retail lcd madun ai panel ni a matu gara nhtoi htoi ai rating ra ai kun?
A: 400-700 nits gaw nta kata na matu; 1,000+ nits gaw hkuwawt hku shingdu de mada yu na matu; Shinggan na kiosk ni a matu 2,500+ nits.
San: Sut masa -grade lcd panel ni gaw teng sha kade daram na hkra hkam sharang lu ai kun?
A: 50,000-100,000 hkying hkum MTBF hpe hkrak hkra galaw ai masa hta-5-11 ning tup matut manoi galaw ai, nbung hpe hkang ai lam hte nhtoi htoi ai masa ni hta hkan nna.
San: Screen ni shani shagu hkying hkum 8 sha galaw ai rai yang, hpaga lam hte seng ai display ni ra ai kun?
A: Durability akyu gaw aten ladaw ni na wa ai hte maren grau grau law wa ai. Shata 24 na deployment horizons hta lai nna, hpaga yumga TCO gaw npu de hkrat wa ai.
Hpang na lahkam
Nang gaw dut mari ai lam hpe sawk sagawn nga ai rai nna, ndai kaw anhte tsun da ai installation hkrat sum ai lam ni hpe koi mayu ai rai yang, anhte a engineering hpung gaw screen shi jan na project ni a matu manu jahpu n jaw ra ai shara jep joi ai lam ni hpe galaw ya ai. Ndai kaw hardware- hpe jep joi ai lam galaw na matu ga sadi n jaw shi yang, anhte gaw thermal risks, circuit capacity manghkang ni, hte content hparan ra ai lam ni hpe flag galaw na re.
